unbelievable! The highest frequency of the lowest frequency! Gengsheng GTX1050Ti Reviews

[PConline evaluation] Just a week ago (October 25th), our PConline first evaluated GTX1050Ti/1050 cards. As this year's real dessert product, GTX1050Ti took the place of GTX960 and became a thousand N card. The current choice. At the same time, since the GTX1050Ti has no public version, it also gave AIC a great deal of room to play; this is not the case. GTX 1050Ti Gale EX took over and let us work together.

Gengsheng GTX 1050 TI Gengfeng EX-4G Reference price: Loading... Image reviews Overview of quotation parameters

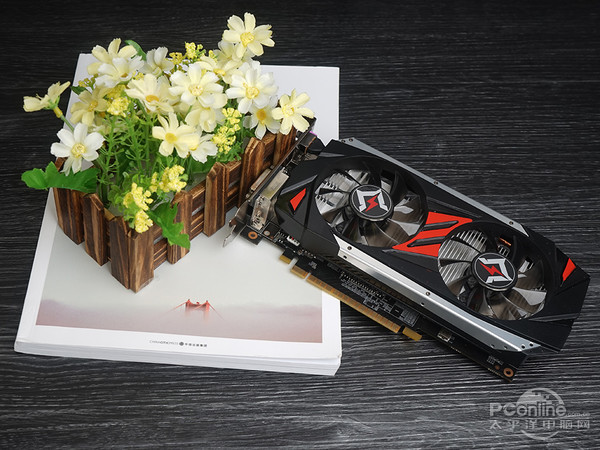

Appearance has to say that this box is very bright (although I bought a video card, laugh ~), large blocks of red hidden in the middle of a "wind" word! The entire card also uses a red element in the design, and the huge "wind" word in the middle of the two fans leaps into it.

The whole card size is 242mm x 126mm x 39mm. Based on the positioning of the product, this card does not have a backplane.

The external power supply is 6Pin. Although the GTX1050Ti can also meet the power consumption requirement by relying solely on the PCI-E power supply, it is surely to increase the frequency to stabilize the frequency at a higher level.

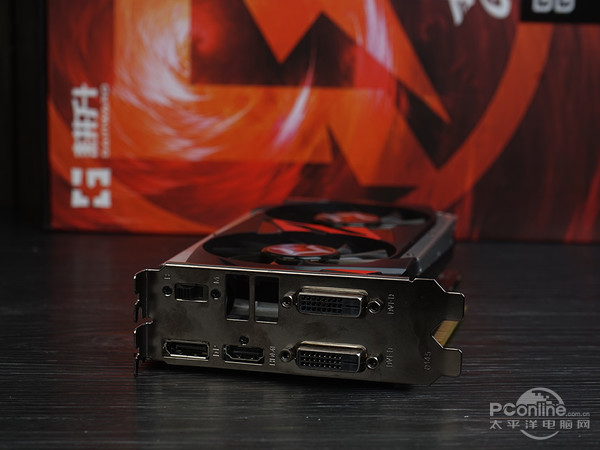

Video output interface is also relatively sufficient, equipped with two DVI interfaces, as well as one HDMI, DP interface, basically to meet the needs of most users interface, and support for multi-screen output.

● Gengsheng GTX1050Ti Gale EX parameter specification comparison:

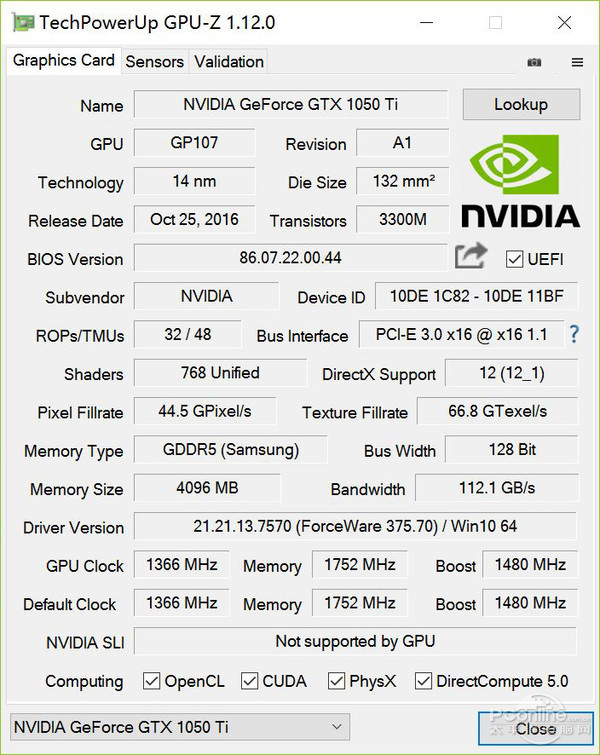

GPU-Z screenshots

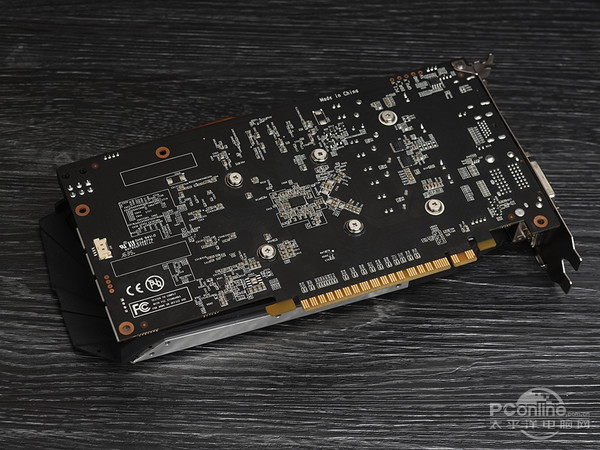

The entire card is fully backrested with 6 screws, plus no backplane, which is very easy to remove.

Mentioned earlier, this card uses a wind blade XE radiator, cultivating the fan specially designed to improve the fan blade size of 2 × 80mm, while improving the cooling efficiency while allowing the fan to run low noise, creating a quiet and comfortable Game environment.

A hot tube pays homage. (Your GP107 can not be heaven?)

3+1 phase power supply design, more than enough to deal with GP107 core.

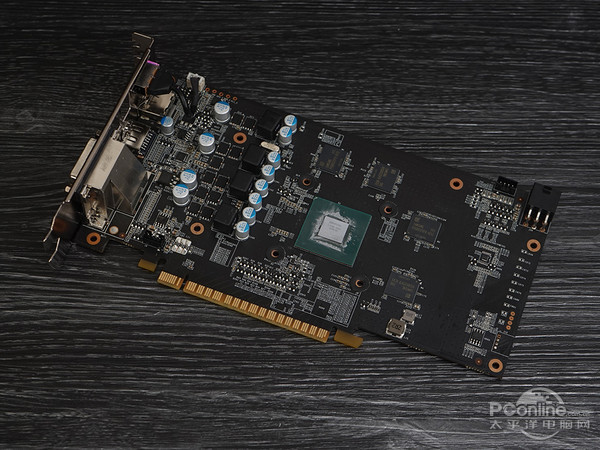

PCB front

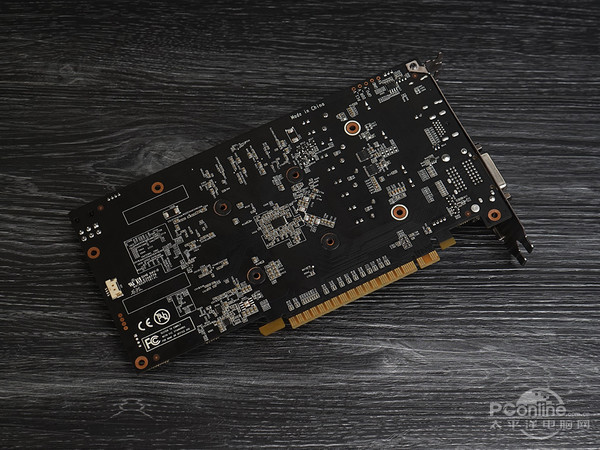

PCB back

In fact, the public version of the GX1050Ti's PCB is inherently small, and the PCB component layout has become more empty. This is, of course, more conducive to heat dissipation.

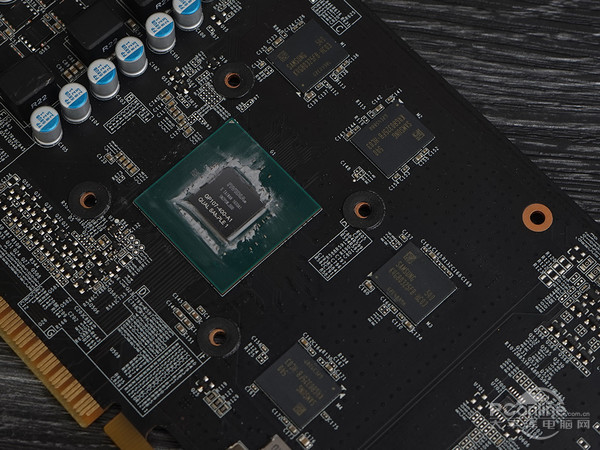

The core code name is GO107-400-A1. Four 1GB GDDR5 chips are stable and stable like a dog. The memory bit width is 128bit (I don't know if the recent Samsung mobile phone unit's loss will be severely affected by the increase in price.)

● Test platform description:

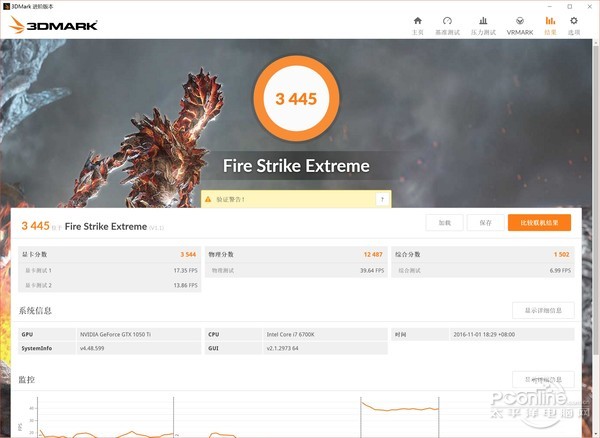

● 3DMARK theoretical performance test:

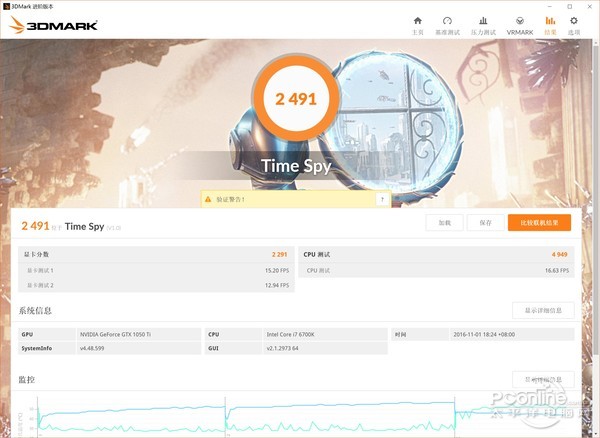

Based on the positioning of GTX1050Ti, we only tested Time Spy and Extreme.

Theoretical test summary: The entire card 3DMark running between GTX1050 and GTX1060 3G, a good interpretation of the GTX1050Ti's positioning; although no matter how high frequency is beyond the reach of the GTX1060 3G, but limited by the specification, we can only Nothing is wrong.

● Game performance measured:

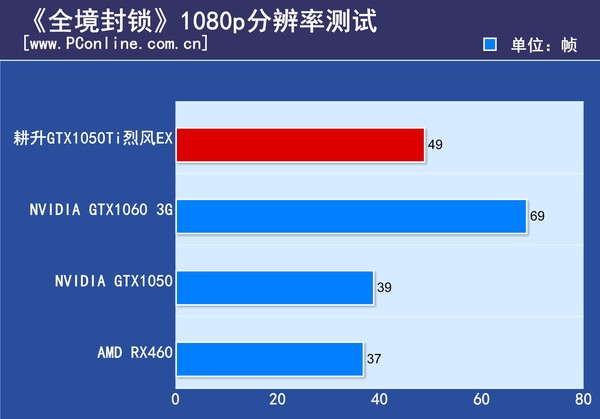

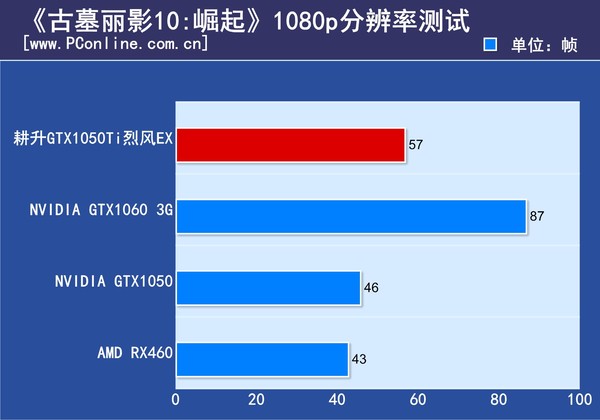

In terms of games, we use the currently popular four games for testing, including "Tomb Raider 10", "Singularity Ashes", "Watching Pioneer" and "Blocking across the country."

Test summary: Faced with many mainstream games in 1080P high-effect settings, Gengsheng GTX1050Ti Gale EX can keep running smoothly, so far it is very hot users "watch Pioneer" to 100 + frames, which shows that this is a thousand dollars friends weapon .

● Platform power consumption test:

In order to simulate the player's real use scene, and the graphics card is positioned as a low-power gaming video card, we will use the power consumption of the standby idle and full-loaded games to compare the power consumption of the graphics card with other graphics cards. .

Power consumption test summary: non-public version of high-frequency plus external 6Pin power supply design, power is slightly higher than the public version is nothing wrong, but the overall look of a 350W power enough to meet the needs of this video card.

● Graphics temperature test:

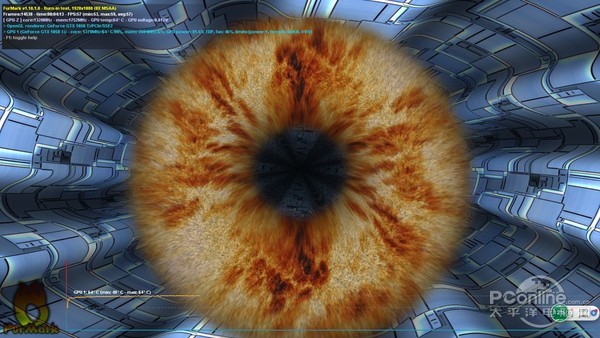

Full load temperature (Click on image to enlarge)

Test summary: At room temperature 26°C, the GTX 1050Ti Gale EX's copying temperature is 64°C. Although it is not very good, it is still within the acceptable range! (Although it is slightly cooler than the base of a dual heat pipe copper base of a friend.)

● Card noise test:

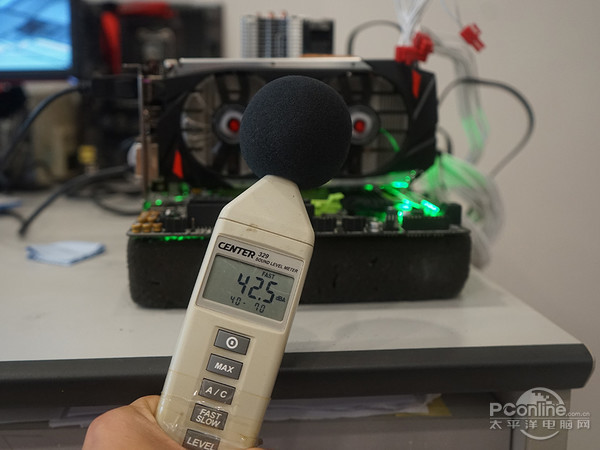

Here we have a noise tester that tests the graphics card's fan noise when Furmark is fully loaded.

Test summary: only 42.5 decibels when the machine was dubbed, it was very quiet and it was like whispering.

About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.

● PConline graphics ladder diagram:

Ladder Diagram Description: Based on the higher frequency and thermal design, we placed the GTX 1050Ti Gale EX on the GTX 1050Ti.

●PConline evaluation room summary:

On the performance, do not say anything, only on the market's highest frequency of 1366MHz, this card in the same non-public GTX1050Ti performance will not be bad.

Again on the selling price, Tmall double 11099 yuan is basically in the lowest price of non-public GTX1050Ti, is simply no one! (Although I don't know if this village still has this shop!)

Anyway, if you want to buy a i3 6100+B150 3000 budget game console recently, buy this card as stable! (In view of the fact that RX470D currently does not necessarily buy it, Koko!)

1, 1366MHz commercial highest frequency, no performance
2, coincides with electricity supplier double eleven, price pleasing
3, wind blade XE radiator, pure copper heat pipe design, temperature control is also OK
4, 3 + 1 phase power supply, GP107, and low power consumption
5, 4G large memory
6. It is very quiet even if it is fully loaded.

Performance is lost to the RX470D
